10K Vertical Lift Check Valve Anti Corrosion Cast Iron Flange End

Product Categories
China • Yuanda Valve Group Co., Ltd.
Contact Now

10K Vertical Lift Check Valve Anti Corrosion Cast Iron Flange End

Brand Name : Y

Model Number : KS-10K

Place of Origin : China

MOQ : 10 pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10000 pcs per year

Delivery Time : 5-8 work days

Packaging Details : wooden box 1200*1100*1100

Product name : Lift Check Valve

Pressure : 10K

Material : Cast Iron

Temperature of media : -10 To 80℃

Color : Customer's Request,Grey

Power : Vertical Check Valve

Connection : Flange Ends

Media : Water

Size : DN40- DN300

Disc : Cast Iron

Contact Now

Pressure 10K Flange End Vertical Check Valve Lift Check Valve

Main parts and materials

Body /Bonnet Cast Iron
Disc Cast Iron+Brass
Stem Stainless steel/ Brass
Seat Ring Brass

Test

Nominal Pressure 10K
Shell Test 2.1mpa
Seal Test 1.6 mpa

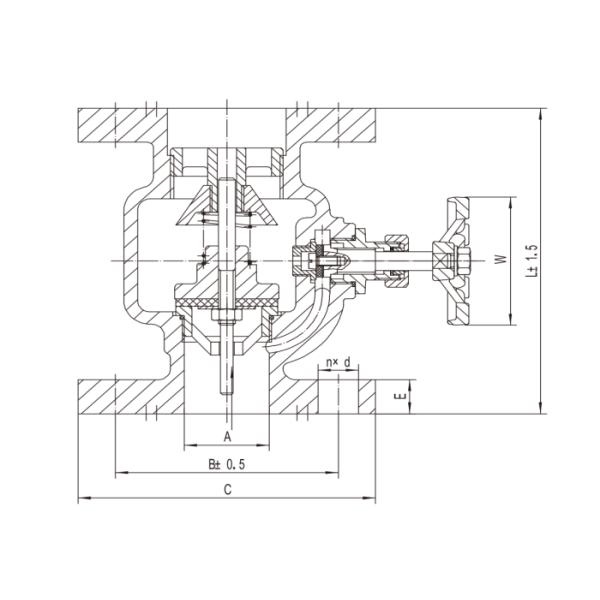

Dimensions

Size L D b Zx фd
40 162 140 18 4x ф19
50 183 155 18 4Xф19
65 195 175 18 4xф19
80 210 185 20 8Xф19
100 215 210 22 8x ф19
125 255 250 22 8x ф23
150 275 280 23 8x ф23
200 390 330 24 12x ф23
250 410 400 28 12xф25
300 495 445 28 16Xф25

10K Vertical Lift Check Valve Anti Corrosion Cast Iron Flange End

10K Vertical Lift Check Valve Anti Corrosion Cast Iron Flange End10K Vertical Lift Check Valve Anti Corrosion Cast Iron Flange End10K Vertical Lift Check Valve Anti Corrosion Cast Iron Flange End
